Lap Joint Assembly

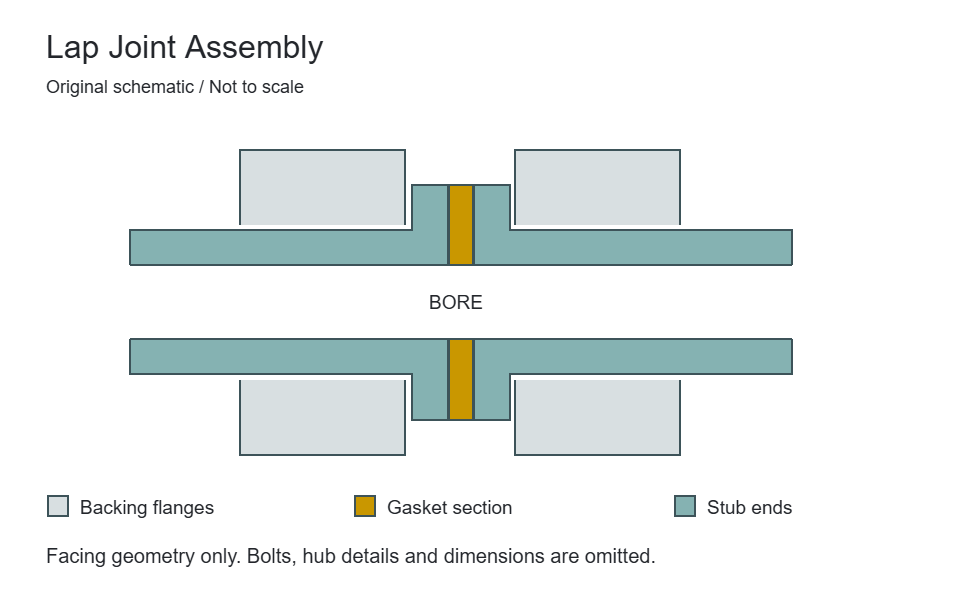

In a lap-joint assembly, the stub end provides the gasket seating surface. The separate backing flange transfers bolt load and can rotate for alignment before tightening.
Separate the component roles
The backing flange and stub end are distinct components. The backing flange does not normally form the process-wetted gasket seat. Specify the material and dimensions of each part rather than assigning the stub-end material to the complete assembly by default.
Fit between the lap and backing flange
The stub-end lap thickness, outside diameter and corner geometry must suit the backing flange. Bore clearance and the seating contact need to be checked as an assembly. A generic loose-ring photograph cannot establish compatibility with a particular stub end.
Gasket and mating joint
The gasket specification follows the stub-end seating surface and mating connection. Include pipe wall thickness, weld preparation and the required finish on the lap face. Rotation assists alignment during assembly; it is not a swivel-joint function for an operating pipeline.
Selection reference only. Offered scope, technical compliance and availability are confirmed against the complete project enquiry.
Mating face and gasket requirements
For Lap Joint Assembly, face geometry, gasket selection and assembly loading must be reviewed together. Confirm the complete mating pair before ordering.
| Parameter / designation | Technical information | Selection requirement |
|---|---|---|
| Stub-end face | The stub end or lap provides the process-side gasket seating. | Specify its material, finish and seating dimensions. |
| Backing flange | The separate flange transfers bolt load through contact with the lap. | Its material does not establish the process-wetted material. |
| Contact radius | Match the backing bore/radius to the actual stub-end corner. | Interference can prevent correct seating and load transfer. |
| Assembly alignment | Rotation can assist bolt-hole alignment before tightening. | The complete assembly still requires matched dimensions and an approved gasket. |
Compare related options
Compare Lap Joint Assembly with the related forms or references below. A related product is not necessarily a permissible substitute.
| Related product / reference | Distinction | Check before selection |
|---|---|---|
| Raised Face (RF) Flanges | A raised face provides a gasket seating surface inside the bolt circle. Specify the face dimensions, finish and gasket as a coordinated joint requirement. | RF dimensions under the exact flange standard and designation |
| Flat Face (FF) Flanges | A flat face has no raised gasket seating step. Confirm the gasket coverage, mating flange material and joint loading rather than identifying it only by appearance. | Type, construction, material and applicable standard |
| Ring Type Joint (RTJ) Flanges | An RTJ face uses a machined groove and a matching metal ring gasket. Ring and groove designations must be specified as a system, not chosen by nominal pipe size alone. | Flange standard, connection designation and groove details |
| Tongue and Groove Flanges | A tongue-and-groove joint pairs a projecting tongue with a matching groove. The two faces and the confined gasket dimensions must be specified together. | Tongue side, groove side or complete mating set |
| Male and Female Flanges | A projecting male face mates with a recessed female face. Specify the full seating geometry and gasket requirements rather than substituting tongue-and-groove terminology. | Male, female or matched pair |
Inspection, documents and delivery
Define acceptance requirements for Lap Joint Assembly in the purchase order. Required examinations and documents depend on the material, design and project specification.
| Review stage | Information to confirm | Order requirement |
|---|---|---|
| Material identity and traceability | Specification, grade, heat/lot identification and the required material certificate. | Agree documentation and marking before manufacture; visual appearance cannot verify alloy identity. |
| Dimensional verification | Seating diameter, face profile, recess/projection and mating clearances. | Identify inspection points, tolerances, units and drawing revision. |
| Surface and end condition | Gasket-contact surface, attachment end, edges and any coating exclusions. | State finish and visual acceptance criteria; agree protection of machined surfaces. |
| Supplementary examinations | Any specified PMI, NDE, hardness, impact, corrosion or other tests. | Define the method, sampling and acceptance criteria; tests are not automatically included. |
| Assembly compatibility | Gasket dimensions/material, mating flange and bolting procedure. | Design approval and correct assembly remain separate from a dimensional inspection report. |
| Packing and order release | Quantity, identification, surface protection, documents and delivery destination. | Agree preservation, packaging and release requirements with the order. |
Enquiry checklist
Details for Lap Joint Assembly
Specify the complete joint and design conditions. This checklist is not a dimensional table or an engineering approval.
| Item | Requirement |
|---|---|
| Components | Backing flange and stub-end designations separately |
| Materials | Process-wetted stub end and backing flange materials |
| Fit | Lap diameter, thickness, corner radius and bore clearance |
| Joint | Gasket seat, finish, pipe wall and mating flange |
