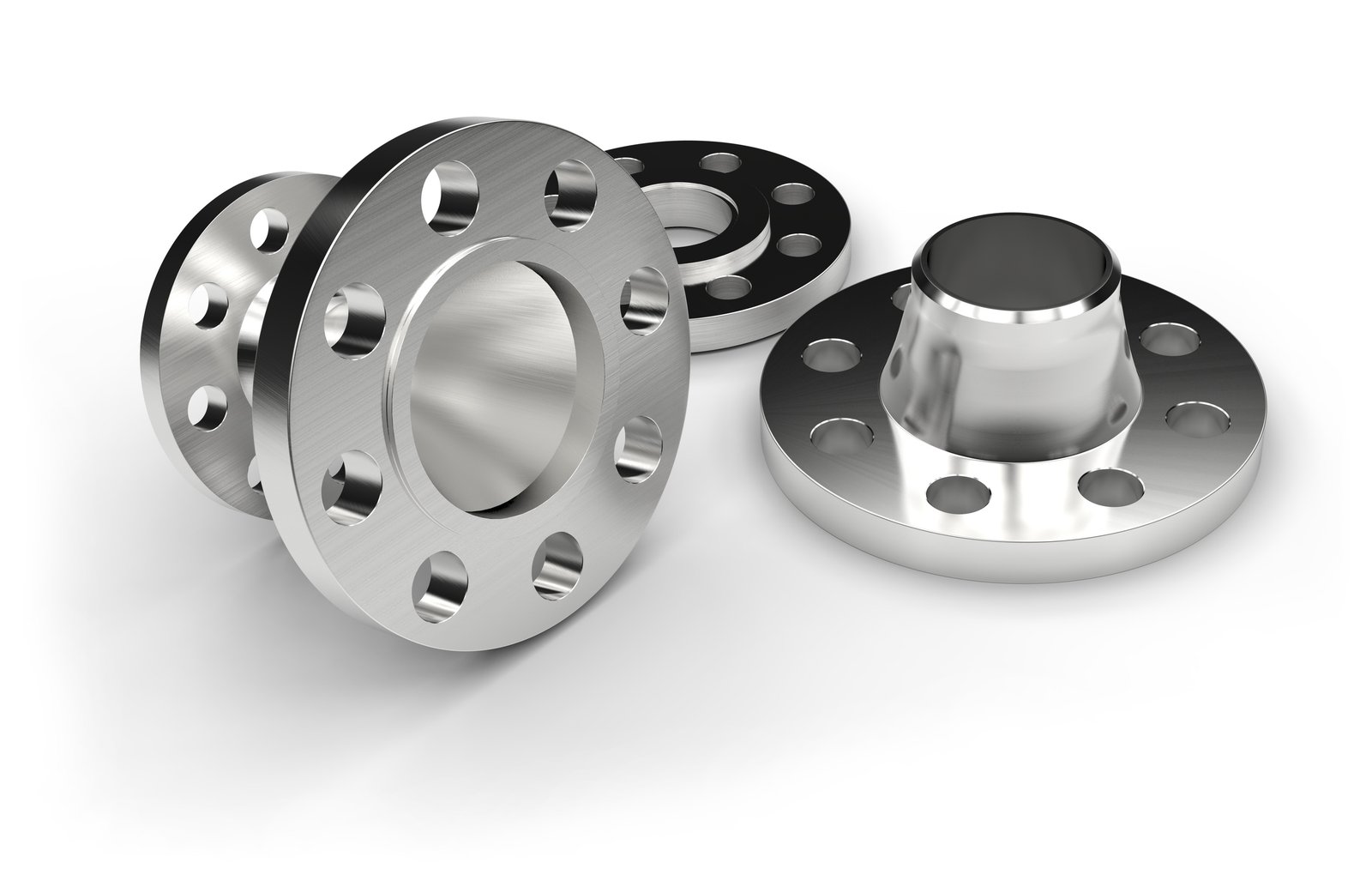

Companion Flanges Manufacturer, Supplier & Exporter
Companion flanges, also known as threaded flanges, are designed for easy connection to threaded pipe systems without the need for welding. These flanges screw directly onto NPT threaded pipe and are bolted to a mating flange using a gasket to create a secure, leak-resistant seal.
They are widely used in low to moderate pressure applications such as water distribution, fire protection systems, compressed air lines, and general industrial piping. Companion flanges offer fast installation, easy removal, and simplified maintenance.
Manufactured in accordance with industry standards including ASME B16.5 and ASTM International material specifications, our companion flanges ensure dimensional accuracy, pressure integrity, and long service life.
Key Features
- Threaded (NPT) connection – no welding required
- Available in Class 150 and Class 300 pressure ratings
- Flat Face (FF) and Raised Face (RF) options
- Precision-machined bolt holes for accurate alignment
- Durable materials for corrosion resistance
- Easy installation and maintenance
Material Used in Manufacturing
- Steel
- Carbon Steel
- Alloy Steel
- Duplex & Super Duplex Stainless Steel
- Nickel Based Alloys
Applications
- Companion flanges are ideal for:
- Fire sprinkler systems
- Mechanical rooms
- Pump and valve connections
- Compressed air systems
- Industrial piping networks
Standards and Specification
| Parameter | Specification |
|---|---|
| Connection Type | Female NPT Thread |
| Size Range | ½” to 12” (larger sizes available upon request) |
| Pressure Ratings | Class 150 / Class 300 |
| Face Type | Flat Face (FF) / Raised Face (RF) |
| Material Options | Carbon Steel, Stainless Steel (304/316), Ductile Iron |
| Coating Options | Black, Galvanized, Epoxy Coated |
| Thread Standard | ASME B1.20.1 (NPT) |
| Applications | Water, Oil, Gas, Air, Fire Protection |
Why Choose Valtron Forge & Fittings?
- Compact and strong design for tight piping layouts.
- High-performance materials for durability and corrosion resistance.
- Rigorous quality control including hydrostatic and dimensional testing.
- Long service life with minimal maintenance for critical piping systems.
- Companion Flange from Valtron Forge & Fittings provide reliable flow distribution, mechanical strength, and compliance with international standards, making them suitable for demanding industrial and process piping systems.
